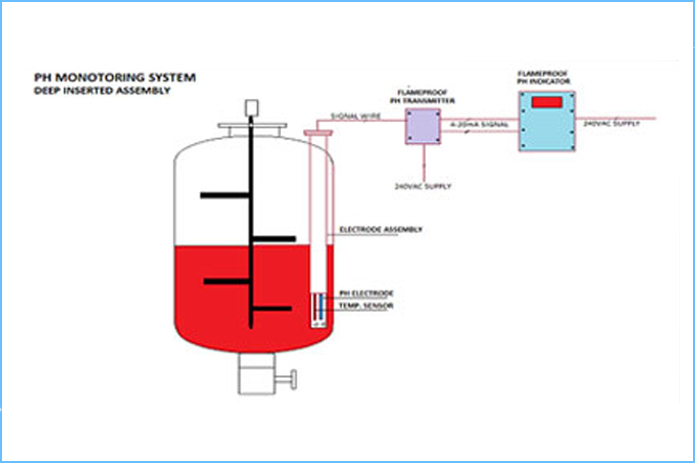

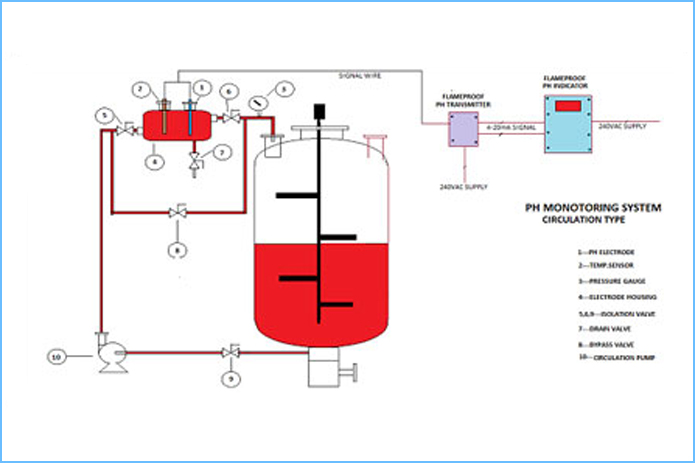

| Features :- |
| Instrument is very useful in Various Industries Like Chemical, Fertilizer , Pharmaceutical, Dyes & Pigments Power Plant, Food, Water Treatment , Effluent Plant & etc to Measure Correct Acidic & Alkaline Value |
• Bright Red LED displays
• Precision indication of pH
• Auto Temperature Compensation through PT-100 Temp.Sensor
• Front Panel calibration of pH-4 (or pH-9.2) and pH-7
• Wall Mounting Panel M.S Powder Coated |
| Specification :- pH MONITOR(Indicator) |
• Display : 3½ Digit Red 0.56inch 7 Segment LEDs
• Range : 0.00 to 14.00 pH
• Input Impedance : >1012O
• Auto Temperature : 0 to 100°C with external PT100 source Compensation (instrument supplied with resistance corresponding to 25°C for PT100)
• Accuracy : 0.5% ± 1 Digit
• Calibration : Standard pH-7 : 7 ± 1 Slope pH-4 : 4 ± 1
• Supply : 220V AC ± 10% |
| |
| Specification :- pH CONTROLLER & TRANSMITTER |
• Display : 3½ Digit LED 0.56” character height
• Range : 0.00 to 14.00 pH
• Auto Temperature : 0-100°C using PT100 external sensor
Compensation
• Calibration : Standard pH-7 : 7.00 ± 1
Slope pH-4 : 4.00 ± 1
• Alarm Limits : 0 to 14.00 for Acid/Base
• Accuracy : 0.5% ± 1 Digit
• Input Impedance : >1012 O
• Tx. Output : 4-20mA isolated for 0-14.0 pH
• Relay Output (2 Nos) : Contact rating 5A at 220V AC
• Control Relay Logic : Acid Relay ON for pH > Set Limit ,Base Relay ON for pH < Set Limit
• Consent Contact Output : P-NO contact rating 5A/220V AC ON when pH within ACID& BASE Limits.
• Supply : 220V AC ± 10% at 50Hz |
| |
| Specification :- pH DATA LOGGER |
• Display : 0.56” Red LED display for pH 0.56” Red LED display for Clock
• Sensor : pH sensor for pH. PT100 sensor for Temperature
• Range : 0.00 to 14.00 pH
• Temp. Comp. : In Auto Mode, 0-100°C using PT100 ext. sensor In Manual Mode, settable from front panel from 0-100.0°C
• Calibration : 2 Point calibration. Auto buffer recognition of 4.00, 7.00, 9.00 & 10.00 pH
• Input Impedance: >1012 O
• Resolution : 0.01 for pH. 0.1°C for temperature
• Logging Rate : 1 second to 99Mins59seconds
• Data Logging : Directly create a .csv file on the Pen Drive (compatible with Excel)
giving a tabular format values of Date, Time and selected channels
• Real Time Clock: Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
• Power Supply : 230V AC ± 15% at 50/60Hz |
| |
| NOTE: It is necessary to either use an external PT100 temperature sensor for compensation or terminate with a resistance corresponding to the PT100 resistance value at room temperature. The equipment is supplied with a termination resistance for 25˚C. |
|
| CALIBRATION PROCEDURE: (At room temperature) |
- Power on the Instrument ( Ensure Power supply Terminal connection Properly L-Phase ,N-Nutral ,E-Earthing)
- Connect pH Electrode at B & C connector
- Wash the electrode with distilled water & clean properly.
- Deep the Electrode in Standard Buffer Solution of 7.0 pH (Nutral Value)
- Check the reading for 7.00 pH , if there is difference adjust the trim pot mark as 7 pH
- Wash & Clean the pH electrode & deep in to 4.00 pH (Acidic value)
- Check the reading for 4.00 pH , if there is difference adjust the trim pot mark as 4 pH
- Wash & Clean the pH electrode & deep in to 9.20 pH (Alkaline value)
- Check the reading for 9.20 pH , it will show correct value within accuracy
- Wash the electrode with distilled water & clean properly.
- After Calibration Instrument is ready for Use.
|
| |
| NOTE:-For Alkaline value Calibration use standard Buffer of 9.2 pH.
For Calibration use trim pot mark as 4 pH |
ACCESSORIES SUPPLIED WITH INSTRUMENT (Brought out Items ) |

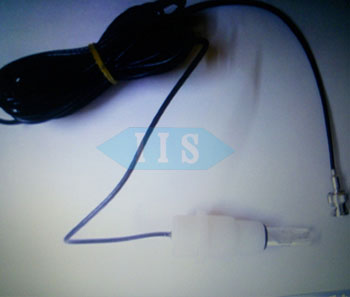

pH ELECTRODE
Range: 0 to 14pH |
| |
|
| |
|
| |
